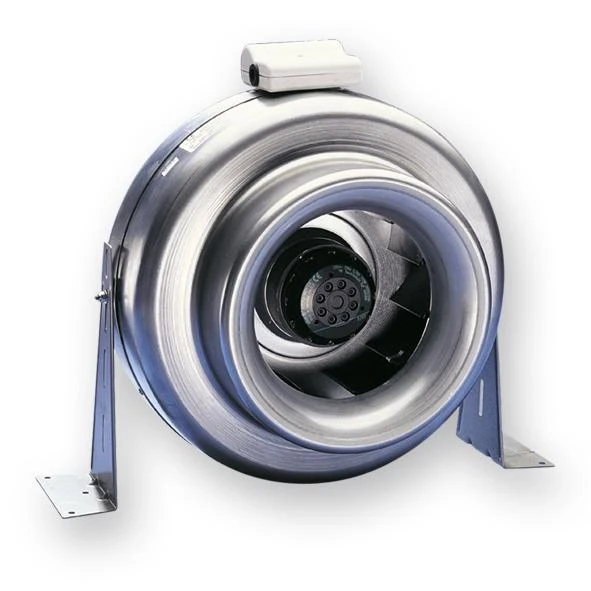

Xpelair XID100 4″/100mm Centrifugal Metal Inline Fan Silver – 90101AA

Xpelair XID100 Centrifugal Metal Inline Fan 4″/100mm – 90101AA

The Xpelair XID inline range is engineered for trouble-free operation, delivered with adjustable mounting brackets and a terminal box.
These practical, reliable XID fans are ideal for ducted applications in shops, schools, factories, offices, pubs, hotels, restaurants, and kitchens and are available in a variety of duct size diameters to suit any application.

The XID range is manufactured in zinc-coated corrosion-resistant sheet metal with 30mm long spigot connections for ease of connection to ductwork.
The XID fans are suitable for use in ambient temperatures ranging from -30ºC to +50ºC. The fan is fully speed controllable using the XIC1 speed controller.

Features

• Compact and robust zinc steel construction
• Pressure developing, centrifugal inline fan suitable for extract or intake applications
• Extra length 30mm spigots
• Can be mounted at any angle using the universal mounting bracket supplied
• External rotor motor – totally enclosed and lubricated for life
• Insulation Class F. Fitted with safety thermal overload protection – protected to IPX4
• Impeller is backward curved
• Supply Voltage – 220-240V 50Hz

Specification

• Spigot Diameter – 97mm
• Extract Performance (m³/s) 0Pa – 0.08
• 100Pa – 0.06
• 200Pa – 0.04
• 300Pa – 0.01
• Sound Pressure Level (dB(A)@3m) – 25
• Max Electrical Power Rating (W) – 85
• Weight (kg) – 2.5
