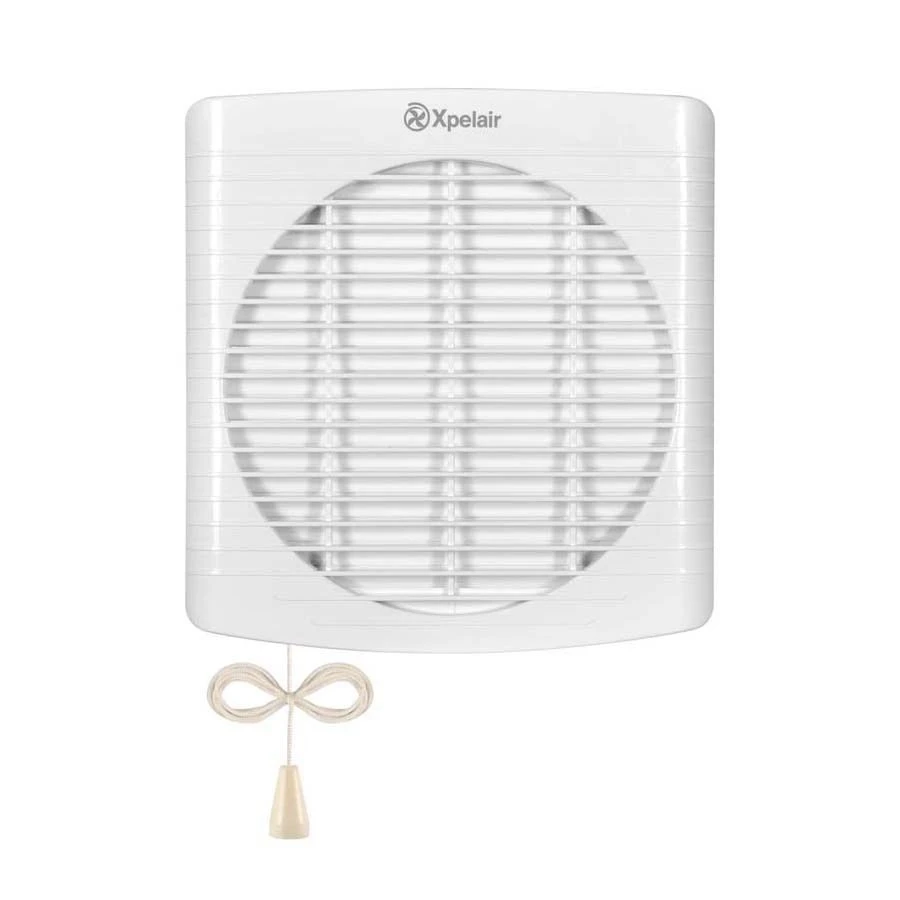

Equipped with an extremely capable axial fan, the unit can be applied to provide direct extraction to the outside of your home and has the option of wall, window, or panel mounting, thanks to the supplied kit. It also has an integrated finger guard, so there’s no danger of painful accidents when in operation.
With pull cord activation, the GXC9 extractor fan meets the relevant Building Regulations regarding kitchen ventilation, and the attractive white design ensures it’s easy on the eye while remaining unobtrusive.
Specification
- 1 Speed
- 549 (FID, m3/h) Extract Performance
- 153 (FID, l/S) Extract Performance
- 44 (dB(A) @3m) Sound Pressure Level
- 32W Electrical Power Rating
- 257mm Hole Diameter
- 312mm Height
- 294mm Width
- 3.9 Kg Weight
Features
- Hole diameter with wall liner: 266mm
- This high-performance extractor fan has remained a byword for commercial fans for almost 50 years
- Reversible and feature totally enclosed external rotor motors
- Provides constant volume outputs, even in gusty external conditions
- The pre-balanced sickle-bladed impellors eliminate the fan judder ensuring quiet trouble-free operation
- The sealed for life maintenance free bearings ensure suitability for running at any angle
- Running costs are impressively low
- When not in use the silent electro-thermal shutter cassette closes silently against backdraughts
- Tamper-proof positive plug and socket assembly provides a means of isolation for service access
- Suitable for installation in single and sealed double glazed windows (up to 25mm)
