Vent-Axia Silhouette 100T Axial Bathroom, Kitchen And Toilet Fan – 454056 – Return Unit

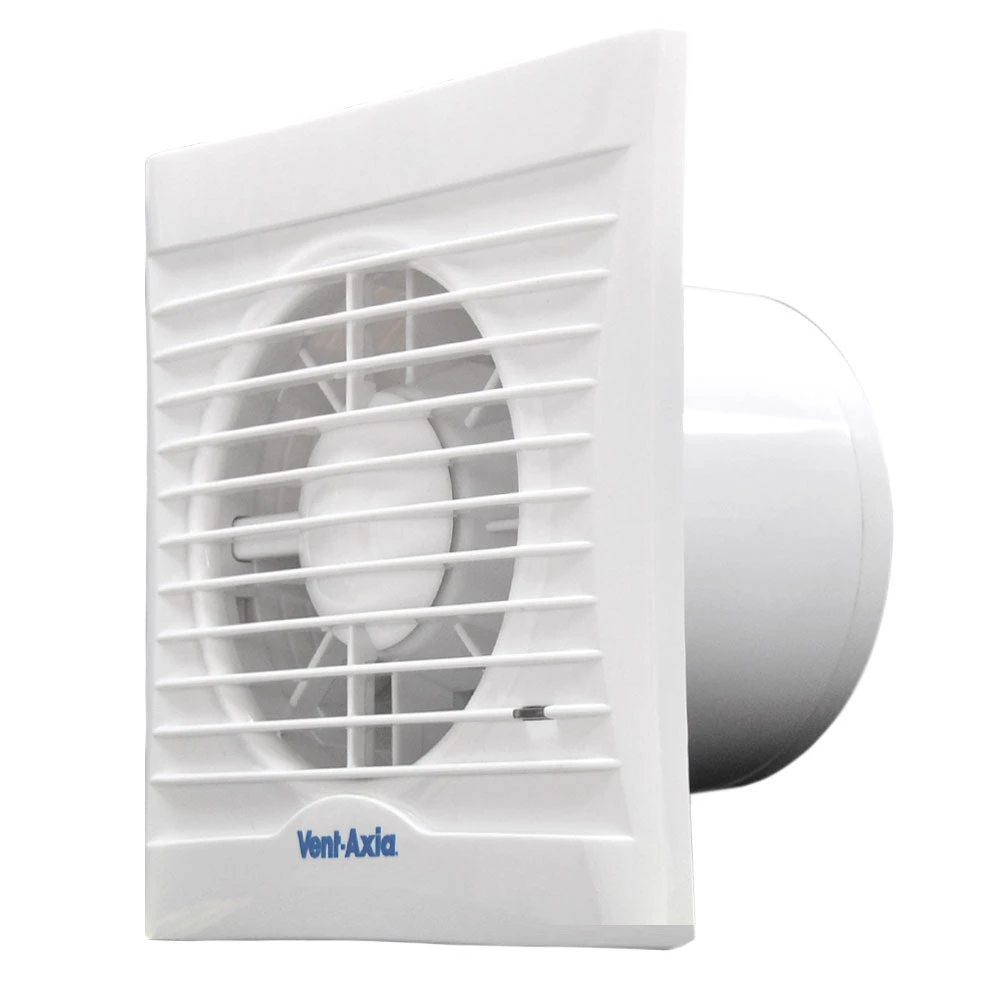

Vent-Axia Silhouette 100T Axial Bathroom, Kitchen, and Toilet Fan – 454056

limline Bathroom Ventilation

With a slim profile of only 17mm, Silhouette blends in with the wall surface to provide an unobtrusive installation. Silhouette has an FID performance of 21 l/s. Silhouette can be ceiling/panel mounted and connected to an appropriate duct run to the outside.

Safety Extra Low Voltage (SELV) Fans

Safety Extra Low Voltage (SELV) is designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV model can be safely installed within the spray area. SELV models are rated IPX7, control is by a mains safety isolating transformer with 12V AC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.

Features

• Single-Speed
• Noise Level 30dBA at 3m
• Ceiling or Wall-Mounted
• Ducting Not Included
• Backdraft Shutter
• Adjustable Overrun Timer: Max. 20min
• Extraction Rate 75m³/hr

Specification

• Wattage: 14
• IP Rating: IP44
• Width: 160
• Height: 160
• Manufacturer Code: 454056
• Barcode: 5015135494506
