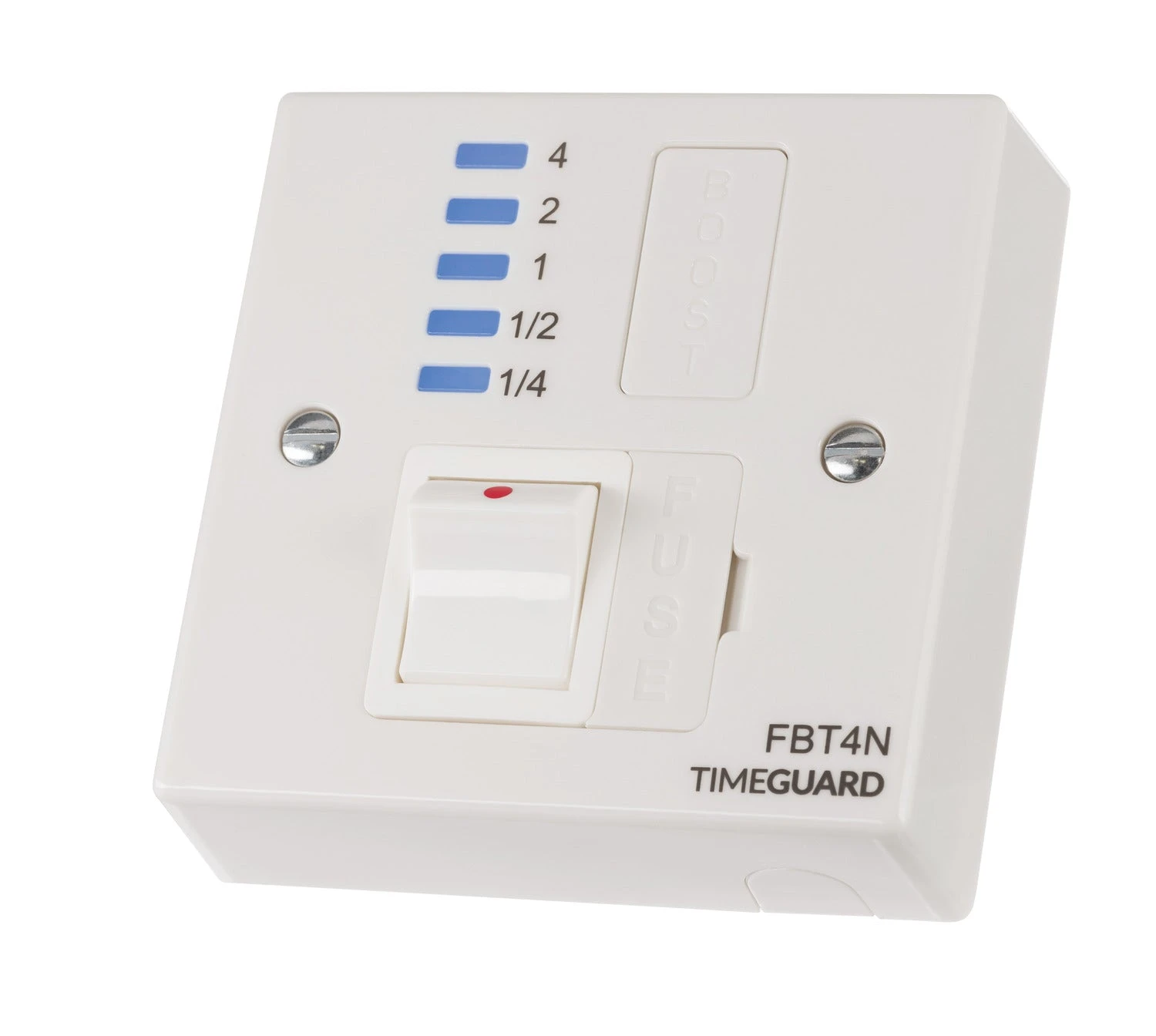

Timeguard Electronic 4 Hour Boost Timer And Fused Spur – FBT4N

Timeguard Electronic 4 Hour Boost Timer and Fused Spur – FBT4N

BoostMaster Fused Spur Countdown Switches now added to the range providing timed output protected by a BS1362 fuse switch. Automatic timed countdown selections to a fail safe OFF using simple push button programming with clear LED output status. Simply replace existing single gang connection units or fixed appliance outlets.

Up to 5 ON times can be selected: 1/4hr, 1/2hr, 1, 2 and 4 hours. Automatic timer countdown selection to fail safe OFF. Easy push button selection with clear LED output status. Replaces existing single gang connection unit or fixed appliance outlets. Provides timed output protected by a BS1362 fuse switch. Ideal for immersion and room heaters automatically switching off at end of time period set. Fits a standard flush or surface mount BS wall box min. 25

Features

• Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading.
• Ideal for immersion heaters, room heaters, towel rails and lighting.
• Replaces existing single gang connection unit or fixed appliance outlets. box min. 25mm deep.
• Up to 5 on times can be selected: ¼ hour, ½ hour, 1, 2 and 4 hours.
• Easy push button selection with clear LED output status.
• Provides timed output protected by a BS1362 fuse switch.
• Fits a standard flush or surface mount BS wall box min. 25mm deep.

Specifications

• Timer Mode: Boost
• Setting Type: Digital
• Contact Type: Normally open
• Operating Voltage: 230V AC
• Switch Rating 230V AC: 13A (3kW) resistive, 1000W Filament lighting, 500W Fluorescent lighting 200W LED lighting, 100W CFL lighting
• Operating Temperature: 0 to 45ºC
• Wall Box: Minimum depth 25mm
• EC Directives: Conforms to Latest Directives
• Dimensions (mm): Width 85, Height 85, Depth 31
