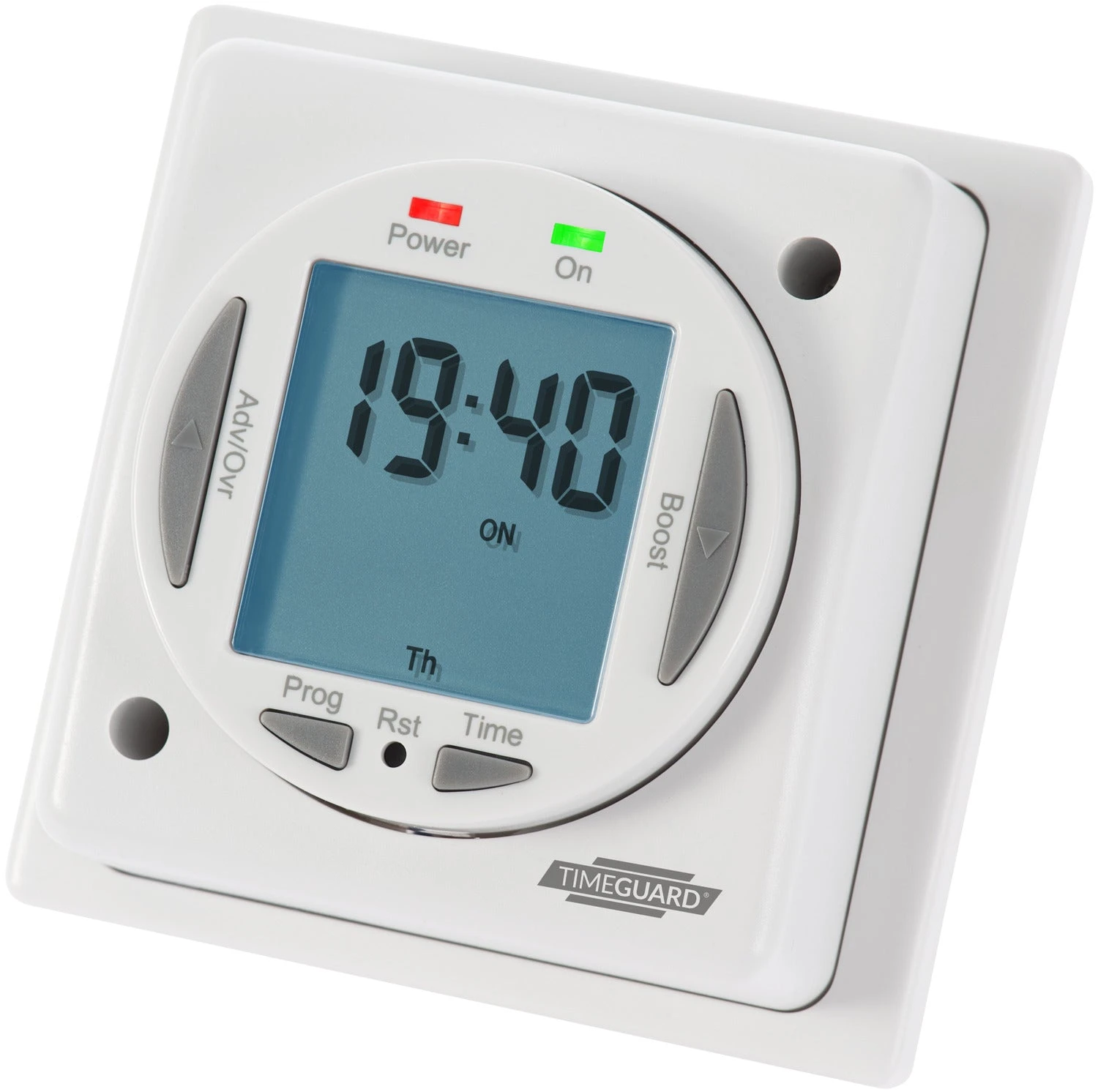

Timeguard 24hr/7 Day Electronic 16A Immersion Heater Timer – NTT03

24 Hour/7 Day Compact Electronic Immersion Heater Timeswitch

Features:

• 16(4)A load rating
• 4 ON/4 OFF easy-set programme periods per day, 28 ON/28 OFF programmes per week
• Shortest switching time 1 minute
• Extra large ‘Easy View’ screen with blue LED backlighting
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Large easy push programme buttons
• Self-cancelling override button to next programme change
• Optional 1 and 2 hour boost button
• Automatic Summer/Winter changeover
• 720 hours rechargeable memory back-up
• Fits a standard flush or surface mount box min 32mm deep

Specifications:

• Timer Mode: 24 Hour/7 Day
• Setting Type: Digital
• Switch Rating 230V AC: 16A Resistive (3.68kW), Inductive 4A
• Stand-alone LED Rating: 100W
• Operating Temperature: 0°C to 40ºC
• Battery: 720 Hours Rechargeable
• Cable Connection: 1.5 – 2.5mm2 Flexible Cable
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 80mm x Width: 75mm x Depth: 32mm

Criteria

• Warranty: 3 Years
• Voltage: 230V AC
• Width: 75
• Height: 80
• Manufacturer Code: NTT03
• Barcode: 5012483012314
