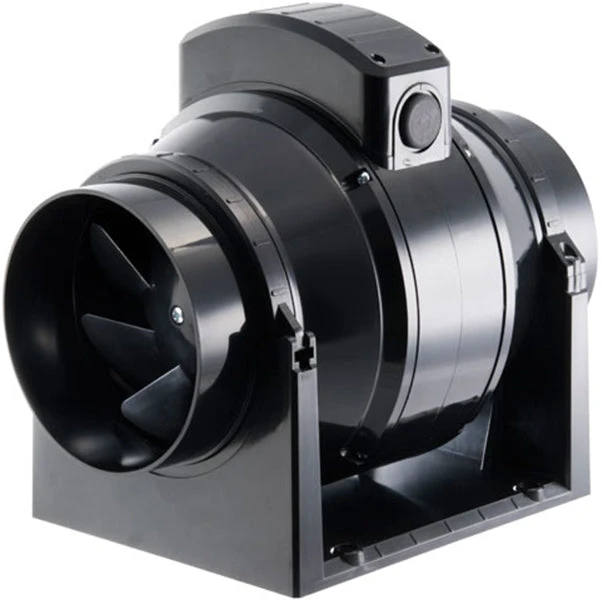

Manrose MF125T 125mm In-Line Mixed Flow Extractor Fan With Timer

Manrose MF125T 125mm In-Line Mixed Flow Extractor Fan with Timer

This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.

It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.

Specifications

• RPM High: 2400
• RPM Low: 1700
• Wattage High: 33
• Wattage Low: 28
• Maximum Airflow (m³/hr) High: 310
• Maximum Airflow (m³/hr) Low: 240
• Maximum Airflow (l/s) High: 86
• Maximum Airflow (l/s) Low: 67
• Maximum Pressure (Pa) High: 230
• Maximum Pressure (Pa) Low: 160
• dB(A) 3m* High: 25
• dB(A) 3m* Low: 21
