Hyco Sigma 98° 3 In 1 Swan Neck Boiling Water Tap Brushed Nickel – SIGMASBN

Hyco Sigma 98° 3 in 1 Swan Neck Boiling Water Tap Brushed Nickek – SIGMASBN

Hyco is a leading UK supplier of water heaters/accessories, hand dryers and space heaters. They have been established for over 30 years and are a manufacturer and distributor to a number of UK leading electrical wholesalers and plumber merchants.

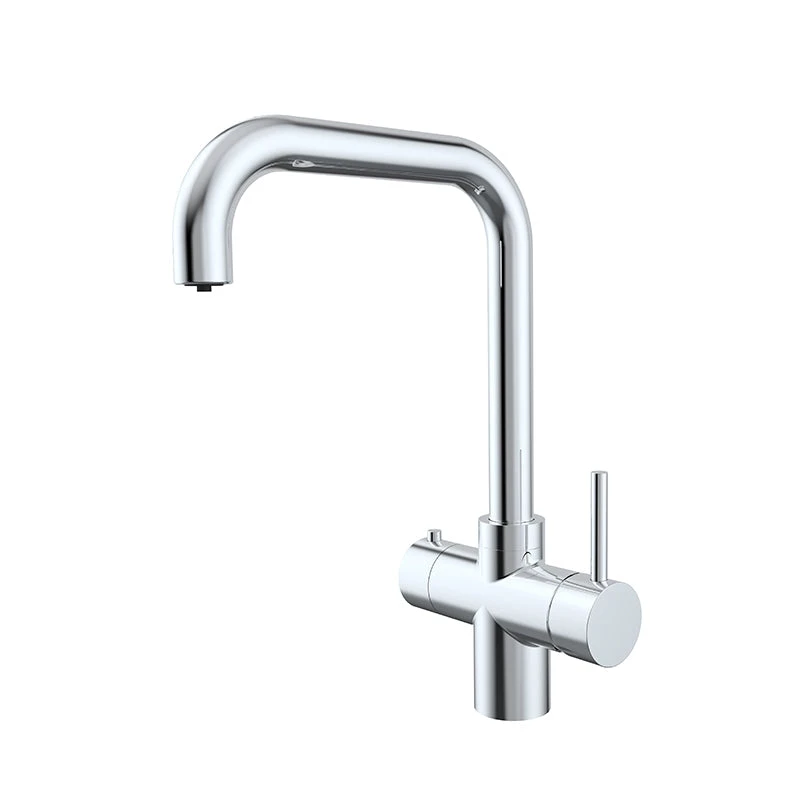

The Sigma range offers a contemporary 3 in 1 tap that provides near boiling 98°C water. Ideal for making hot drinks and many other kitchen uses as well as being a standard hot and cold mixer all from a single tap. This makes it ideal for retro-fit applications as well as new kitchens in homes and small offices. The range offers square or swan neck spouts in a polished chrome or brushed nickel finish.

Features:

• Filtered near boiling 98°C water
• Time saving – no waiting for the kettle to boil
• Space saving – frees up worktop space
• Energy saving – only use required amount of hot water
• Cool touch insulated tap with 180° swivel function
• Easy to install
• Elongated mixer lever for ease of use (length 115mm from 90mm)
• Power rating -1.5kW
• 98°C water flow rate 1.2 litres per minute
• Adjustable temperature settings between 90°C and 98°C

Specifications:

• Outer Casing: Tap – polished chrome/brushed nickel, Tank – powder coated steel
• Recovery Rate – 80 cups/48 mugs per hour
• Draw Off – 10 cups/6 mugs based on 167ml cup and 250ml
• Overheat Protection and Safety Lock Mechanism
• IP Rating – IPX4

Installation & Plumbing

Required hole diameter for mounting tap 32mm – fits in a standard sink. Sink/ countertop up to 50mm thick. The dispensed water temperature can be adjusted down to 98°C on installation if required. Must be installed by a suitably qualified person. Intended for connection to the mains water supply. Minimum water pressure 1.5 bar. Maximum water pressure 5 bar. If higher than this a pressure reducing valve is required. Supplied expansion vessel and pressure relief valve must be fitted.
